Industrial equipments

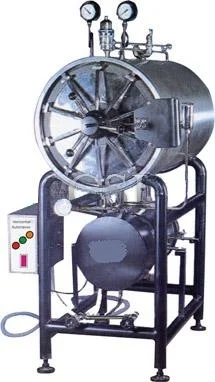

Autoclave Horizontal (Triple Walled) (Cylindrical)

Material	Stainless Steel
Insulation Wall	Triple Wall
Capacity	5 to 20 PSI
Shape	Cyclindrical
Usage	Industries

CSI 102 (B) Autoclave Horizontal (Triple Walled) (Cylindrical)

Construction: Triple walled construction inner chamber is made of high grade stainless steel sheet of SS-304 Grade. The outer body is also made of thick stainless steel. The coiler is made of S. steel. The lid is made of thick steel plate. The unit is duly fitted with highly efficient M.S. Painted ring & radial locking system duly chrome plated. A three way valve or a multi port valve made of stainless steel is installed for controlling the cycle. The pressure is adjustable from 5psi to 20psi; pressure is controlled by automatic pressure control switch. Fitted with water level indicator and vacuum breaker. The unit is fitted with temperature gauge, vacuum breaker and steam tap. The whole unit is mounted on a robust tubular stand made of MS duly painted with attractive stove enamel.

DIAX HEIGHT	LOAD	OUTER S.S.
400x600mm(16×24)	(9kv)
400x1100mm(16×44)	(12kv)
500x900mm(20×36)	(9kv)
500x1200mm(20×48)	(12kv)

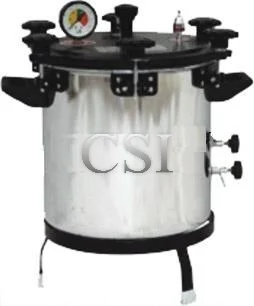

Portable Autoclave

Material Type	Aluminium
Volts	220/230volts
Capacity	20 PSI
Size	300x375mm
Shape	Portable

CSI 103 Autoclave Portable (Made Of Aluminium)

Fitted with pressure gauge upto 20psi. Spring loaded safety valve adjusts a dead weight safety valve. It is hydraulically tested upto 40psi and is supplied with, electrical fittings, cord and plug to on 220/230volts A.C. supply.

Supplied complete with tripod stand.

Size 300x300mm	(12×12)
Size 300x375mm	(12×15)

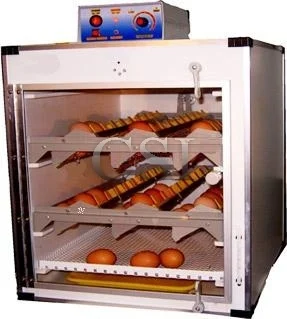

Egg Incubator

Capacity	50-250
Temperature Range	Ambient to 70 Degree
Voltage	220,230 volts A.C
Material	Stainless Steel
Temperature Conrol	Yes
Body Material	Mild Steel

CSI 129 EGG Incubator

Outer wall is made up of M.S. sheet duly painted and inside of SS the gap between inner and outer wall is fitted with high grade mineral glass wool. Temp rang from ambient to 70.c is controlled by “JUMO” / “EGO” GERMAN capillary type thermostat with an accuracy of +_0.5.c the unit is provided with manual tilting device, so as to tilt tray holding the eggs. To work on 220,230 volts A.C. supply.

CAPACITY	WITHOUT HUMIDITY CONTROL	WITHHUMIDITY CONTROL
50 eggs
100 eggs
200 eggs
250eggs

OPTIONAL ACCESSORIES

Digital temperature controller

Autoclave Vertical High Pressure

Capacity	5 to 20 PSI
Volts	220/230 volts
Shape	Vertical
Material Type	Stainless Steel
Insulation Wall	Triple Wall

CSI 102 (A) Autoclave Vertical High Pressure (Triple Walled) (For Dry Sterilization)

Most useful for sterilizing the loaded material under a steam pressure of 5to20 p.s.i. (Adjustable with pressure control switch). It has inner chamber, steam jacket and outer wall made of S.S. duly argon are welded. The space between outer wall and steam jacket is filled with high grade glass wool to minimize the temperature loss. All sterilizers are hydraulically tested upto 40 P.S.I. the lid is made of thick stainless steel and closed by wing release valve, pressure gauge and S.S. basket. Supplied complete with cord and plug to work on 220/230 volts A.C. supply. Fitted with vacuum breaker as a safety device

DIAX HEIGHT	LOAD	S.S.OUTER /S.S.LID.
300x500mm	4.00kw
350x550mm	4.00kw
450x600mm	6.00kw
550x750mm	6.00kw

OPTIONAL ACCESSORIES

Automatic pressure control switch (AUTOMATIC INDFORSS PIEZOSTAT)

Automatic low water level cut-off device

Automatic 0-60 minutes ”GERMAN” Timer

Digital temperature display

Air Laminar Flow Cabinet (horizontal)

Type	Horizontal
Material	S.S body
Color	As shown in picture
Working Size	2’x2’x2′ , 3’x2’x2′ , 4’x2’x2′ & 6’x2’x2′
Size of HEPA filter	2’x2’x6″, 3’x2’x6″, 4’x2’x6″ & 3’x2’x6″
Model	SH-22, SH-32, SH-42 & SH-62

Model	SH-22	SH-32	SH-42	SH-62
Working size	2’x2’x2’	3’x2’x2’	4’x2’x2’	6’x2’x2’
Size of HEPA filter	2’x2’x6”	3’x2’x6”	4’x2’x6”	3’x2’x6”
No. of HEPA filter	1	1	1	2
Illumination	1x20w	1x20w	2x40w	2x40w
Prices
Deluxe model
	2”x2”2”	3”x2”2”	4”x2”2”	6”x2”2”
Power Coated
Complete in storing MS Body/: Complete in S.S body

Air Laminar Flow Cabinet

Material	COMPLETE IN M.S/S5
Color	As shown in picture
Illumination	1x20w , 1x20w , 2x40w & 2x40w
Model Name/Number	SV-23 , SV-32 , SV-42 & SV-62
Size of HEPA filter	2’x2’x6″ , 3’x2’x6″ , 4’x2’x6″ & 3’x2’x6″
Working Size	2’x2’x2′ , 3’x2’x2′ , 4’x2’x2′ & 6’x2’x2′

Detail same as se 113 but with laminar air flowing vertically from top towards the work table.

Model	SV-23	SV-32	SV-42	SV-62
Working size	2’x2’x2’	3’x2’x2’	4’x2’x2’	6’x2’x2’
Size of HEPA filter	2’x2’x6”	3’x2’x6”	4’x2’x6”	3’x2’x6”
No. of HEPA filter	1	1	1	2
Illumination	1x20w	1x20w	2x40w	2x40w
Price
DELUM MODEL

COMPLETE IN M.S/S5 BODY………………………………………..P.O.R.

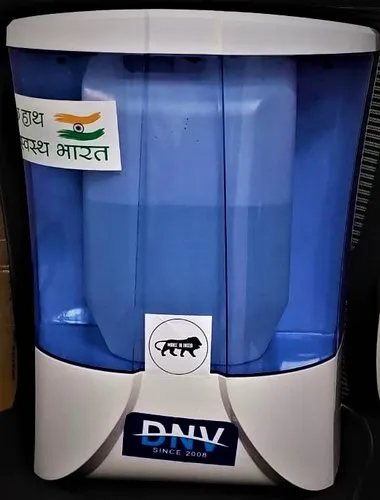

Automatic Hand Sanitization Sprayer Sensor Type. Cap. 5 Lit

Type	Automatic
Capacity	5 lit

Automatic Hand Sanitization Sprayer Sensor Type. Cap. 5 Lit

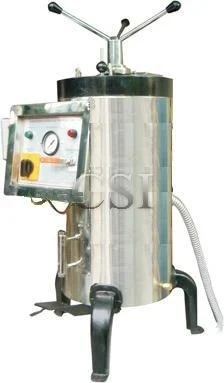

Vertical Autoclave

Capacity	5 to 20 PSI
Insulation Wall	Double Wall
Voltage	220/230 volts
Usage	Industries
Material Type	Stainless Steel
Shape	Vertical

CSI 101 Autoclave Vertical

It is used for sterilization under saturated steam pressure at any selected point between 5to20p.s.i.(optional adjustable with pressure control switch). These are double walled units with inner chamber (boiler) made of 18 S.W.G. stainless steel and outer chamber is covered with M.S. lid is tightened by radial locking system. Fitted with neoprin rubber gasket, all systems are hydraulically tested upto 40 P.S.I. as a safety measure. All autoclaves are fitted with standard accessories such as water level indicator, pressure gauge, steam release cock, spring loaded safety valve and heating element. Supplied complete with S.S basket, cord and plug to work on 220/230 volts A.C. supply.

ALL DELUXE MODELS besides being fitted with stainless steel/LID and having inner chamber made of S.S. and outer chamber stainless steel, are also fitted with VACUUM BREAKER as a SAFETY DEVICE

DIAX HEIGHT	LOAD	OUTER M.S.	DELUX S.S.
(a)250x450m.m.(10”x18”)	1.5kw
(b)300x500m.m.(12”x20”)	2.0kw
(c)350x550m.m.(14”x22”)	3.0kw
(d)450x600m.m.(18”x24”)	4.0kw
(e)550x750m.m.(22”x30”)	5.0kw

OPTIONAL ACCESSORIES

Automatic pressure control switch (AUTOMATIC INDFORSS PIEZOSTAT)

Automatic low water level cut-off device

Automatic 0-60 minutes ”GERMAN” Timer

Digital temperature display

Plant Growth Chamber

CSI 110 Plant Growth Chamber

It has outer wall made of ms sheet duly powder coated and inner wall made up of heavy gauge S.S. sheet. The gap between inner and outer wall is fitted with high grade glass wool to avoid thermal loss. Besides outer double walled door, a full view inner glass door allows inspection of test sample without disturbing the inner chamber conditions. Unit is supplied with three adjustable perforated shelves. Temperature range from 5.cto50.c+_1.c is controlled by DUAL SETTING DIGTAL temperature indicator-cum-controller so as to set two different temperatures for day and night. Exterior illumination with fluorescent tube fitted on both side of the chamber accounts for artificial day light, and the cyclic illumination conditions are regulated by automatic 0-24 hrs. Timer, when all the tubes are on temperature from 15.c can be from ambient to 50.c and the same is achieved by means of injecting steam . Arrangements for increasing the humidity are provided and not for decreasing.

W x H x D	CAPACITY	S.STEEL
505x830x415mm	6cuft
570x875x550mm	10cuft
650x900x550mm	12cuft

OPTIONAL ACCESSORIES

Digital humidity controller

Biological Safety Cabinet/ Sampling Booth

CSI 114 Biological Safety Cabinet/ Sampling Booth

The cabinets are fabricated out of thick board duly sun mica clad. Interior surfaces are epoxy painted for its longer life. The work table is made heavy gauge S.S. sheet and is fitted with U.V. germicidal

Light, static pressure manometer, exhaust system (Suitable for 6 feet duck) and virus brun out unit side panels are made out of thick transparent plexi glass duly framed. The unit is fitted with pre-filter and HEPA filter. Air is drawn through pre- filter and is made to pass through highly effective HEPA (High efficiency particular air) filters having efficiency particular air) filters having efficiency retaining all air- borne particles of size 0.3 micron and larger. Using a dynamic balancing machine, the blower and motor assembly is statically and dynamically balanced. Motor of ¼ H.P. Capacity operates with minimum noise level. The working area is illuminated by fluorescent lighting fitted to the unit. The high of the working table provides a comfortable “SIT DOWN” working position for the operation for the operator. In addition to the above futures of a standee vertical laminar flow bench the “SCIENTECH” bio-safe cabinets have arrangements for re-circulating a part of the air thus creating highest level of clean air.

The unit is also convertible to the conventional vertical laminar flow bench with downward air flow by lifting the sliding front door upwards. Air is sucked through the pre-filter and the excess air is thrown out from the top. Through a HEPA filter of size 1’x1’x6’ supplied with glove ports and gauntlets. HEPA filter UV light and fluorescent light.

Model	SS-104	SS-105	SS-106
Working size	2’x2’x2’	3’x2’x2’	4’x2’x2’
Size of HEPA filter	1.5’x2’x6”	3’x1.5’x6’	1.5’x2’x6”
No. of HEPA filter	1	1	1
Illumination	1x20w	1x20w	1x30w
Price

OPTIONAL ACCESSORIES

Exhaust ducting (per running feet)

Gas burner

Virus burn out unit

Rotary Vacuum Evaporator (Buchitype) (Variable Speed)

CSI 119 Rotary Vacuum Evaporator (Buchitype) (variable speed)

The apparatus consists of an evaporating flask rotated by sparking induction motor in a heating water bath. Vacuum distillation of solvent at high and low temperature is achieved quickly and efficiently by use of a VARIABLE SPEED motor, which prevents foaming and bumping of the liquid (Solvent) into the evaporating flask and also distillation under controlled atmosphere the evaporating flask is pear shaped to give a large surface area of evaporation and is champed to a glass duck which goes through the drive unit and protrudes about 120mm into the condenser. The condenser is fitted with standard joint at the top and the bottom for receiver flask the unit is fitted with a quick action jack. capacity I liter (without water bath & vacuum pump)

OPTIONAL ACCESSORIES 1Liter

Thermostatic water bath (SS

–do- but digital model

Vacuum pump

Micro attachment set

Condenser double coil

Rolaling flask

Collection flask

Clip for holding ball joint 50mm

Clip for holding B-24 (joint)

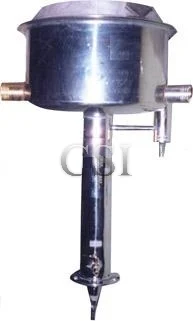

Water Still (Wall Mounting)

CSI 122 Water Still (Wall Mounting)

The unit is recommended for making progeny free distilled water of a very high degree of purity. Made out of S.S. special kettle element is fitted with ejection device/auto cut for safety of the element is provided water supply is stopped. The cock fitted to the unit is of brass C.P.A wall mounting clamp is provided with the unit. Supplied with cord and plug to work on 220/230 volts A.C.

CAPACITY	LOAD	With Removable Condenser
2litre/hr (approx)	2.0 KW
4litre/hr (approx)	3.0 KW
6litre/hr (approx)	4.5 KW
8litre/hr (approx)	6.0 KW

Deonizer (double bed)

CSI 125 Deonizer (double bed)

It consists of an in –built profiler and very high exchanging capacity non- corrosive caption and anion resin columns profiled with imported RESINS for efficient result having treated water parameters conforming to IS-1069/64. It yields chemically pure water equal to multiple distilled water having conducting of less than 10 micro siemens /cm and ph of 7.0 to 9ph. Fitted with a sturdy PVC multi-control valve and can be connected direct to water taps. The conductivity meter operettas on both AC supply and 9.0v DC battery. Supplied with one plastic chemical proof regeneration tank and the complete unit in housed in a painted MS troll for easy mobility. Available with conductivity meter.

Model No.	SA-50	SA-70	SA-100	SA-150	SA-200
Output/hr	50Ltr.	70Ltr.	100Ltr.	150Ltr.	200Ltr.
Analogue Model
Digital Model

Muffle Furnace Rectangular

CSI 130 Muffle Furnace Rectangular

Light weight ceramic fiber wool insulation (instead of brick insulation). The outer casting is made of double walled thick P.C.R.C. sheet, duly powder coated. Heighten elements are made of KANTHAL “A-1” wire and backed by high temperature insulation, which avoids loss of energy. Temperature control unit consists of energy regulator, fitted in front of furnace with two pilot lamps. The apparatus is complete with one pyrometer, thermocouple, silver thermal fuse, main lead with power plug. To work on 220/230 volts of 400/440 volts A.C. maximum temp. is 1000.c and working temp.950.c for model of higher temperature the maximum temp. is 1200.c, 1450.c and working temo.1150.c& 1400.c

MUFFLE SIZE	WORKING 950.C	WORKING 1150.C	WORKING 1450.C
(W x H x D)	(with Pyrometer)	(With digital Temperature Indicator cum controller)	(With Transformer Devices)
100x100x225mm
125x125x250mm
150x150x300mm
200x200x300mm
300x300x300mm

OPTIONAL ACCESSORIES

Digital temperature indicator-cum-controller extra. For 950.C

PID Temperature controller

Circulating Water Bath

CSI 131 Circulating Water Bath

A highly in demand instrument where is required to be circular to be circular to some external source through an f. h. p. pump. Most useful for circulating water to Abe refract meter, condenser coils etc. temperature from ambient to 90.c is controlled through hydraulic type thermostat with an accuracy of +_ 0.5.c inner chamber made of S.S. and outer chamber made of m.s. sheet duly power coated. Inside bath size 8”x9”x101/2 With a cover at side of size:10”x7” approx. To work on 220×230 volts

Water Bath Incubator Shaker (Metabolic Shaking Incubator)

CSI 136 Water Bath Incubator Shaker (Metabolic Shaking Incubator)

It is a double walled unit with inside made of thick S.S. sheet and outer made of M.S. sheet duly power coated prevents falling of condensed water droplets on the specimens. Heating is achieved through a immersion type heater and the temperature is controlled by hydraulic type thermostat with an accuracy of +_ 0.5.c. the bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor. Shaking speed range is between 40 to 140 cycles per minute. The shaking tray can either hold test tubes or Erlenmeyer flask of 25ml or 100m or 250 ml or 1000ml. as ordered by the users. (Kindly mentioned the capacity on the flask while ordering). Supplied complete with one shaking tray, paramedical cover, L-shaped thermometer cord and plug, to work on 220/230 volts A.C. supply. Available with heating arrangement only (having temperature range from ambient to 100.c ) or with both heating and cooling arrangements (having temperature range from 5.c to 60.c)

Inside size	Temp ambient to 100.c	Temp5.cto60.c (with digital temp controller)
225x275x150mm
275x275x150mm
405x300x150mm

OPTIONAL ACCESSORIES

Spare shaking tray or test tube rack for part (A),(B).or (C)

Digital temperature indicator-cum-controller

PI digital temperature indicator-cum-controller

Digital R.P.M. Meter

Water Bath Rectangular (Single Wall)

CSI 132 Water Bath Rectangular (Single Wall)

Made out of heavy gauge S.S. with concentric rings. Auto-cut heating elements are fitted. To protect the same when bath gets dry. To work on 220/230 volts A.C. supply.

300x250x100mm(6holes of 75mm dia)

355x405x75mm(12holes of 75mm dia)

Kjeldahl Digestion Unit for 40 Tubes (Tube Heating Block)

CSI 189 Kjeldahl Digestion Unit For 40 Tubes (TUBE Heating Block)

The equipment has a very castled top with room for heating 40 digestion tube of 75ml. each heating elements are speared uniformly so that the entire castled top, and thus the tubes, attain the same temperature thought. Temperature is controlled by digital temp. Controller. The gap between the elements and outer M.S. painted wall is fitted with high grade mineral wool to avoid thermal loss. To work on 220 /230 volts A.C. Supply 40 tubes dia 24mm.

OPTIONAL ACCESSORIES

To heat 40 tube 24mm

To heat 20 tube 38mm

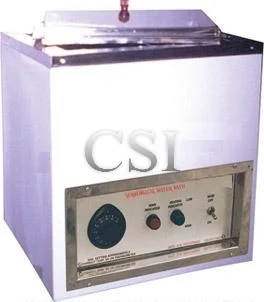

Serological water bath

CSI 134 Serological water bath

These units are double walled with inner chamber made up of S.S. sheet and outside of M.S. duly power oated. The gap between the walls is filled with special grade glass wool in order to avoid thermal loses. A drain plug is also fitted to the unit, the inner chamber fitted with immersion type heating element is covered with perforated removable diffuser tray. The cover is provided with the unit as a standard accessory. Temperature from ambient to 100.c is controlled by hydraulic capillary type thermostat with an accuracy of +_ 1.c supplied complete with 220/230 volts A.C. supply.

Width x Height x Depth	M.S.OUTER	S.S.OUTER
300x250x15mm (for 2 rack)
330x300x175mm (for4rack)
455x300x175mm (for6rack)
605x300x175mm (for8rack)

OPTIONAL ACCESSORIES

Stirring arrangement with 1/20 H.P. Motor and speed regulator

Digital temperature indicator- cum –controller.

PID temperature controller

Vortex Shaker (test tube shaker)

CSI 146 Vortex Shaker (test tube shaker)

Useful for stirring centrifugal tubes. Test tube or small flask. Fitted with a neoprene rubber cup mounted eccentrically on the shaft against which at its is held the tube with its lower end pressing against the cup. Mixing action is controlled by varying the angle and pressure of the tube against the cup. Fitted with speed control arrangement. To work on 220/230 volts A.C. supply.

With on/off switch

With touch on/off type

Hot Plate Rectangular

CSI 380 Hot Plate Rectangular

Flash Point Apparatus (Cleave Land Type)

CSI 224 Flash Point Apparatus (Cleave Land Type)

It is designed as per IP36 IS 1448 (P60) 1969 and ASTMD- 92-57 specification. It is used for determination of flash point of petroleum products except fuel oil with open cup flash below 80 degree c. it consists of brass cup, heating plate, thermometer clamp. Test attachment with swivel joints for passing over test liquid surface in prescribed manner. Electrically heated with energy regulator and supplied with.

OPTIONAL ACCESSORIES

IP Temp

Digital Colony Counter

CSI 372 Digital Colony Counter

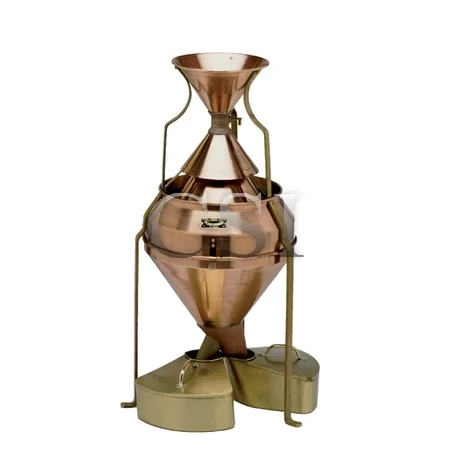

Boerner Grain Divider

CSI 247 Boerner Grain Divider

It is used to reduce the size of a grain/ seed sample into two halves, each exactly reprehensive of the original sample. the body and inner parts are made of copper and brass eliminating possibility of trust. The legs and supports are made of chrome plated steel. The bottom section of the divider is remove able for cleaning and the pockets are visible from top. All units are designed for self emptying. Provides accurate spirits of the samples with an accuracy +5% on a 1kg sample.

SIZE : 38” (H) 17” (W) X 43” (D)

No. of pockets : 38

Supplied with two sample pans

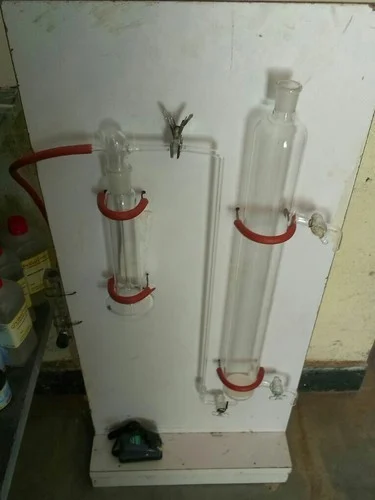

Gas Stripping Apparatus

CSI 363 Gas stripping Apparatus

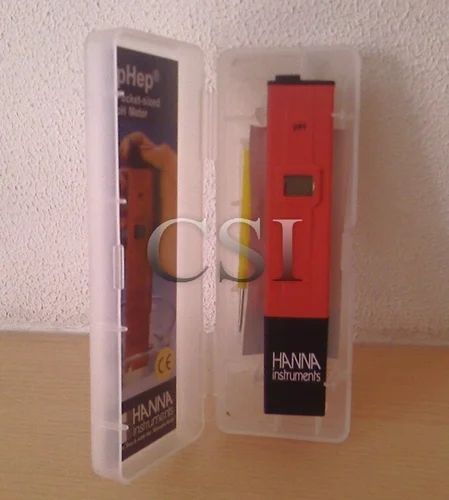

pH meter Digital Pen Type Imported

A lightweight pocket sized pH tester providing fast and accurate reading on a large liquid crystal display.

Range : 0 to 14pH
Resolution : 0.1pH
Accuracy : +/- 0.1 pH
Weight : 85gm

Flashpoint Apparatus (Abels Type)

CSI 222 Flashpoint Apparatus (Abel’s Type)

Suitable for determination of close cup flash point of petroleum production. It is designed as per IP-33 And is -1448 (Part-1) 1985 (p:20) It is suitable for oils whose flashes below 70degree c. supplied with oil cup over assembly fitted with stirrer thermometer socket, S.S. water bath, Stand & electric Heater is fitted at bottom for operation on 220 volts.

OPTIONAL ACCESSORIES

IP Temp thermometer

Infrared Moisture Balance (With Electronic Regulator)

CSI 220 Infrared Moisture Balance (With Electronic Regulator)

With electronic regulator, very easy to operate with an accuracy of 0.2% by direct reading, 0.1% by estimation. Complete with ‘L’ bend thermometer, 10 disposable pans, one tweezers, and instruction manual. Available in 5 gms, 10gms, or 25gms. Capacity (price remains the same for any capacity)

— do—- With megavolt (variable step transformer)

Digital Refractometer (Atago Japan)

CSI 216 (B) Digital Refractometer (Atago Japan)

For Juice, Coffee, Industrial fruids. Cutting oils.

RANGE BRIX	RATE
0-85%

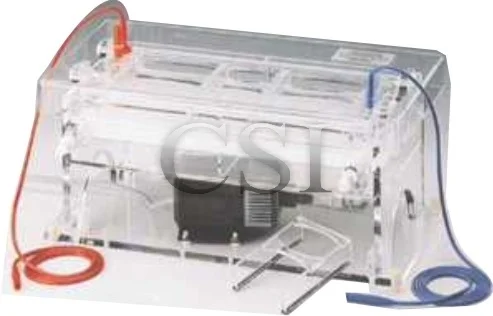

Submarine Electrophoresis System

CSI 208 Submarine Electrophoresis System (Horizontal Electrophoresis)

For DNA/ RNA SEPERATION is supplied complete with 99.9% PURE PLATINUM ELECTRODES, Gel casting tray, one comb with terminal lead.

GE PLATEFORM SIZE	With U.V. Transparent Gel Casting Tray
60x75mm
75x100mm
100x125mm
125x150mm
150x200mm
200x250mm

OPTIONAL ACCESSORIES

Leavelling table for gel casting size:30×30 cm.

Leavelling table for gel casting size:15×15 cm.

Comb stand for gel platform. (for any above size)

Acrylic comb 8 well or thickness 0.4mm/1.5mm/2mm/3mm

Acrylic comb 3 well or thickness 3mm/6mm

Developing chamber (Light proof)

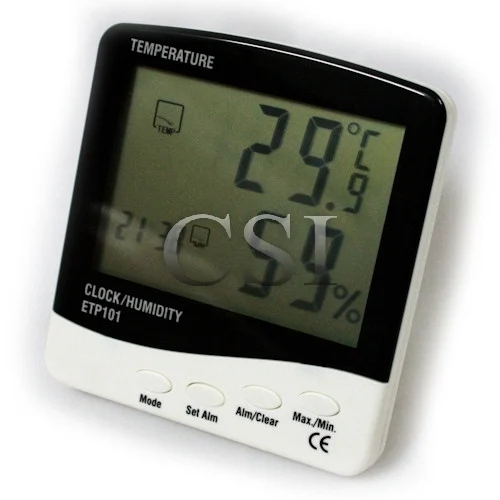

Digital Thermo- Hygrometers

CSI 201 Digital Thermo- Hygrometers

HUMIDITY	TEMPERATURE
Range: 20-99% RH	Range 0-50.C

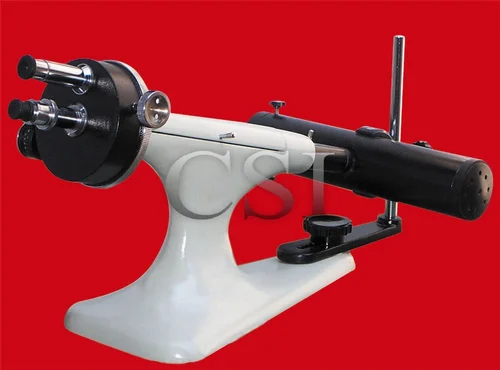

Research Polarimeter

CSI 217 Research Polarimeter

The overall improvement in its optical design, ensures permanent and undisturbed focus, its highly accurate glass scale is divided to read angular digress and also carries scale in I.S.S. Units. The angular scale from 0 to 360 degree is sub divided to 1 degree to enable direct reading to 0.05 degree and by estimation to 0.02 sugar degrees. The sugar scale from 30 degree to 120 degree. Supplied complete with polarimeter tube, sodium lamp, and transformer instruction manual.

Tube Size 220mm with rotating half shadow

Tube Size 400mm with rotating half shadow

OPTIONAL ACCESSORIES

Sodium lamp housing/ pipe fitting with holder

Sodium vapour lamp (35watts)

Sodium lamp transformer 35 watt

Pole tube 220mm

Precision Rotary Microtome (A.O. Spencer type)

CSI 190 (B) Precision rotary microtome (A.O. Spencer type)

It has a front located feed indicted with CAM DRIVE SYSTEM setting from 1-50 microns in steps of 1 micron each the object clamp takes specimen upto 32x27mm on stem of block holders. The cutting micron each the object angle is adjustable through 30 degrees the entire assembly for movement on side ways to adjust horizontal distance from object. Supplied with one honing stone, one bottle of lubrication oil and dust cover.

Precision Rotary Microtome (Lips haw type )

CSI 191 Precision rotary microtome (Lips haw type )

It is useful for sectioning of bone tissue. The wheel is counted balanced with locking device and has automatic feed and release mechanism. A light cover hinged at back is provided for protection of internal parts from dust feed range of 1-50 microns in step of 1 micron each, is controlled smoothly by “ Dial Control” in the rigid front position . For easy positioning of the object to the microtome , and for returning the feed to the starting position. The feed easy positioning of the object to the knife and for returning the pawl automatically ceases to function when the feed reaches the extreme forward position. it incarnate with 120mm knife with back and handle in case 6 block holders. Honing stone bottle of lubrication oil and dust cover.

Micro kjeldahl Digestion Unit

CSI 187 Micro kjeldahl Digestion Unit

This apparatus is used for estimation of nitrogen content in the substance by digestion in micro flask of capacity 30,50 &100ml. the housing is made of m.s. painted with attractive stove enamel. To work on 220/230 volts A.C. supply.

SUPPLIED WITH LEAD FUME DUCK

DELUXE MODEL

Unit of 6 test mantle type (without glass parts)

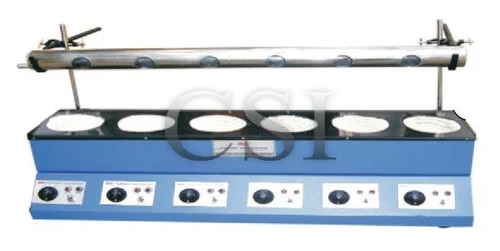

Kjeldahl Digestion Unit

CSI 186 kjeldahl Digestion Unit

It is very useful for estimation of nitrogen content in the substance by digestion for 300 & 500 ml. capacity flasks provided with lead fume duct and pair of hangers. to work on 220/230 A.C.. supply

DELUXE MODEL

Unit of 3 test mantle type (without glass parts)

Unit of 6 test mantle type (without glass parts)

Soxhlet Extraction Unit

CSI 188 Soxhlet Extraction Unit

Ideal heater for the extractors of soxhlet and other type. This apparatus I suitable to heat soxhlet flasks of 50-500ml. consists of m.s. sheet housing , two vertical & two horizontal rods with adopters and screws to hold the flasks. to work on 220/230 A.C. supply

	ROUTINE	DELUXE MODEL
Unit of 3 test mantle type without glass parts)
Unit of 6 test mantle type without glass parts)

Rectangular Hot Plate (With Cast Iron Top)

CSI 181 Rectangular Hot Plate (With Cast Iron Top)

For continuous heating upto 350.c the body is made of specially designed perforated P.C.R.C. sheet painted with attractive stove enamel with insulated elements. To work on 220/230 volts A.C.

SIZE (B x L x H)	WITH ENERGY REGULATOR
20x30x15cm(10”x12”x6”)
25x40x15cm(10”x16”x6”)
30x45x15cm(12”x18”x6”)
45x60x15cm(18”x24”x6”)

OPTIONAL ACCESSORIES

Thermostate Controller

Digital temperature controller

Hot Plate Round (WITH CAST IRON TOP)

CSI 182 Hot Plate Round (WITH CAST IRON TOP)

The body is made of P.C.R.C. sheet duly powder coated paint.

The top cast iron heating plate is round having 20cm. dia. with heating elements of 1.5kw rating . temperature is controlled by energy regulator upto 350.c

Automatic Pipette Washer

CSI 177 Automatic Pipette Washer

It operates on siphoning principal. Consists of S.S. washing cylinder and a removable pipette holder to accommodate pipettes up to 375 mm in length.

Ball Mill (Laboratory Type)

CSI 162 Ball Mill (Laboratory type)

Electrically operated having a capacity from a few gms. To 1kg. Or 2kg or 5kg. Fitted with a F.H.P. motor upto 2kg.jar and with ¼ H.P. heavy duty motor for 5kg. Jar. Maximum speed 80R.P.M. supplied with steel balls for mixing and grinding. Operates on 220 volts A.C. mains.

Capacity	Aluminium Jar	Stainless Steel jar
1kg.jar
2kg.jar
5kg.jar

OPTIONAL ACCESSORIES

Automatic 0-60 minute “GERMAN” timer

Variable speed regulator

Digital RPM meter

Digital Colony Counter

CSI 179 Colony Counter Digital

Fitted with automatic 4 digits LED digital display. Counting plate with illuminated standard wolfhugel ruling ensures clarity differentiated and sharply defined colonies, each touch of marking pencil in the digital increments the colony count by 1 and the glowing LED display depicts the total colony count. Maximum colony count possible up to 9999 provided with a manual reset of digital display. On/off switch, counting plate, 100mm dia lens, cord and plug to work on 220 VAC

Sieve Shaker (Table Top)

CSI 154 Sieve Shaker (Table Top)

Fitted with a FHP motor, it can accommodate six sieves of 8” dia. Speed can be regulated through a continuously variable speed regulator fitted to unit. To work on 220/230 volts A.C.(without sieves)

For 8” dia sieves

For 12”dia sieves

OPTIONAL ACCESSORIES

Automatic 0-60 minute “GERMAN” timer

Sterility Test Unit

CSI 153 Sterility Test Unit

Consists of S.S. holders in manifold of 3 of 6 to hold 47 mm dia, membrane filters, the tops of the holders are connected to the flushing tube with silicon tubing and glass stop cock. A vacuum / pressure pump.) These units are used for sterlity testing when the membrane filter is to be removed from the holder for incubation in culture media. Filtration areas is 12.5 cm and has a holding capacity of 250ml. through only vacuum is required for filleration; some pressure is required for flushing liquids.

3 branch sterility test unit ( made from SS-316)

6 Branch sterility test unit (made from SS-316)

OPTIONAL ACCESSORIES

Mono block vacuum –cum-pressure pump

Oil free vacuum pump

Wrist Action Shaking Machine

CSI 143 Wrist Action Shaking Machine

It has a heavy cast iron with rugged construction and side arms for holding flasks. Fitted with a F.H.P. heavy duty motor with variable speed. Can hold flasks from 100to 1000ml. capacity. Supplied with cord and plug to work on 220/230 volts A.C. supply..

To hold 4 flask

To hold 4 flasks and top platform to hold 4 flask/ bottles

To hold 8flasks

To hold 8 flasks and top platform to hold 4 flask/ bottles

OPTIONAL ACCESSORIES

Automatic 0-60 minute “German” timer

Microprocessor based digital RPM meter

Magnetic Stirrers (Heavy Duty Permanent Magnet)

CSI 149 Magnetic Stirrers (Heavy Duty Permanent Magnet)

It has a compact stirring device utilizing a roating magnetic fied (created by a Permanent magnet) which induces variable speed stirring action. Stirring is accomplished by means of small Teflon rotor, which when placed in the liquid to be stirred is capable of rotation by magnetic field applied from below the container. The unit is fitted with lamp. To work on 220/230 volts. A.C.

Capacity	Without Hotplate	With Hotplate	Deluxe with Hotplate
1Litre
2Litre
5Litre

Rotary Flask Shaker

CSI 140 Rotary Flask Shaker

Platform Size	Holding Capacity	With motor Capacity
45x45cm	49 Flasks of	25 ml
45x45cm	36 Flasks of	50 ml
45x45cm	25 Flasks of	100 ml
45x45cm	16 Flasks of	250 ml
45x45cm	9 Flasks of	500 ml
55x55cm	36 Flasks of	100 ml
55x55cm	25 Flasks of	250 ml
55x55cm	16 Flasks of	500 ml
65x65cm	36 Flasks of	250 ml
65x65cm	25 Flasks of	500 ml
105x105cm	81 Flasks of	250 ml
105x105cm	64 Flasks of	500 ml
105x105cm	49 Flasks of	1000 ml
180x180cm	Any configuration req.

OPTIONAL ACCESSORIES

Microprocessor based digital PRM counter

Automatic 0-60 minute “GERMAN” TIMER

Syringe Needle Destroyer

CSI 139 Syringe Needle Destroyer

To destroy syringe needles from 18Gto26G, needle burns, noise free with electrical cutter.

Refrigerated Water Bath

CSI 134 (A) Refrigerated Water Bath

Double walled outer M.S. painted, inner S.S. temp. digitally controlled %.C to 60.c+_1.c with heating. Cooling & stirring system.

SIZE	RATE
18”x12”x12”

Oil Bath High Temperature

CSI 137 Oil Bath High Temperature

Double walled with inside made of heavy S.S. and outside of M.S. sheet duly power coated. The gap between the two walls is fitted with high grade glass wool to minimize thermal loss temperature range from ambient to 250>c+_2.c is controlled by hydraulic capacity type thermostat. A variable speed stirring arrangement is fitted to the unit for maintaining temperature plug to work on 220/230 volts A.C. supply.

	Capacity
250x250x250mm	12ltr.
300x300x250mm	20ltr.
355x355x250mm	26ltr.

OPTIONAL ACCESSORIES

Digital temperature indicator- cum- controller

PI digital tem. indicator-cum-controller

Leak Test Apparatus Complete With Vacuum Pump & Timer

CSI 206 Leak Test Apparatus Complete With Vacuum Pump & Timer

Industrial Equipment

We manufacture Laboratory Equipments, Laboratory Cooling Equipments etc like Microtomes, Incubators, Ovens, Autoclaves, Laminar Air Flow, Water Bath Equipments, Centrifuge, Water Testing Equipments, Laboratory Shaking Machine, Hot Plates , B.O.D Incubators,Vacumme Oven etc.

Cement Autoclave

Capacity	0-500 (kg/hr)
Material	Stainless Steel
Shape	Vertical
Usage	Industries

CSI 104 Cement Autoclave

Complete with safety, pressure gauge and automatic pressure control switch.

Inner chamber made of MILD STEEL

Inner chamber made of STAINLESS STEEL

B.O.D. Incubator

CSI 105 B.O.D. Incubator (Low Temperature)(super deluxe Digital model)

Most versatile for biochemical oxygen dead determinations. Castor wheel mounted cabinet is double walled with inner chamber SS and outer wall of MS sheet duly powder coated. The gap of 75mm between the outer of the inner wall is fitted with special grade wool to prevent thermal losses. Triple walled back of the unit is fitted two air circulates fans maintaining temperature uniformity throughout the chamber, fully view inner glass/ Acrylic door permits inspection of specimens, without disturbing the same. Lock and key arrangements is provided in the double walled outer door. Unit is fitted with door operated illumination lamp inside the chamber. Refrigeration unit is formed by ISI marked compressor, the front panel is provided with separate indicator lamps for main, heating and incoming voltage.

Supplied complete with 3 shelves, cord and plug to work on 220/230 A.C. supply. Temperature from 5.c is controlled by MICRO PROCESSOR ELECTRONIC DIGITAL TEMPRATURE INDICATOR-CUM-CONTROLLER with an accuracy of +_ 0.5.c.

Super deluxe digital model	Capacity	S.S.(304grade)
(a) 455x610x410mm(18”x24”x16”)	4cuft (212ltr.)
(b)505x830x415mm(20”x34”x17”)	6.1cuft(171ltr)
(c) 570x875x550mm(20”x34”x22”)	10cuft(280ltr.)
(d)650x900x550mm(26”x36”x22”)	12cuft(336ltr.)

OPTIONAL ACCESSORIES

Interior illumination with 3nos.flouresent tubes (temp.10to50.c)

Automatic voltage stabilizer 3kva(TRIPLE RELAY)

All S. Steel body 304/202 grade for GMP standard…….
